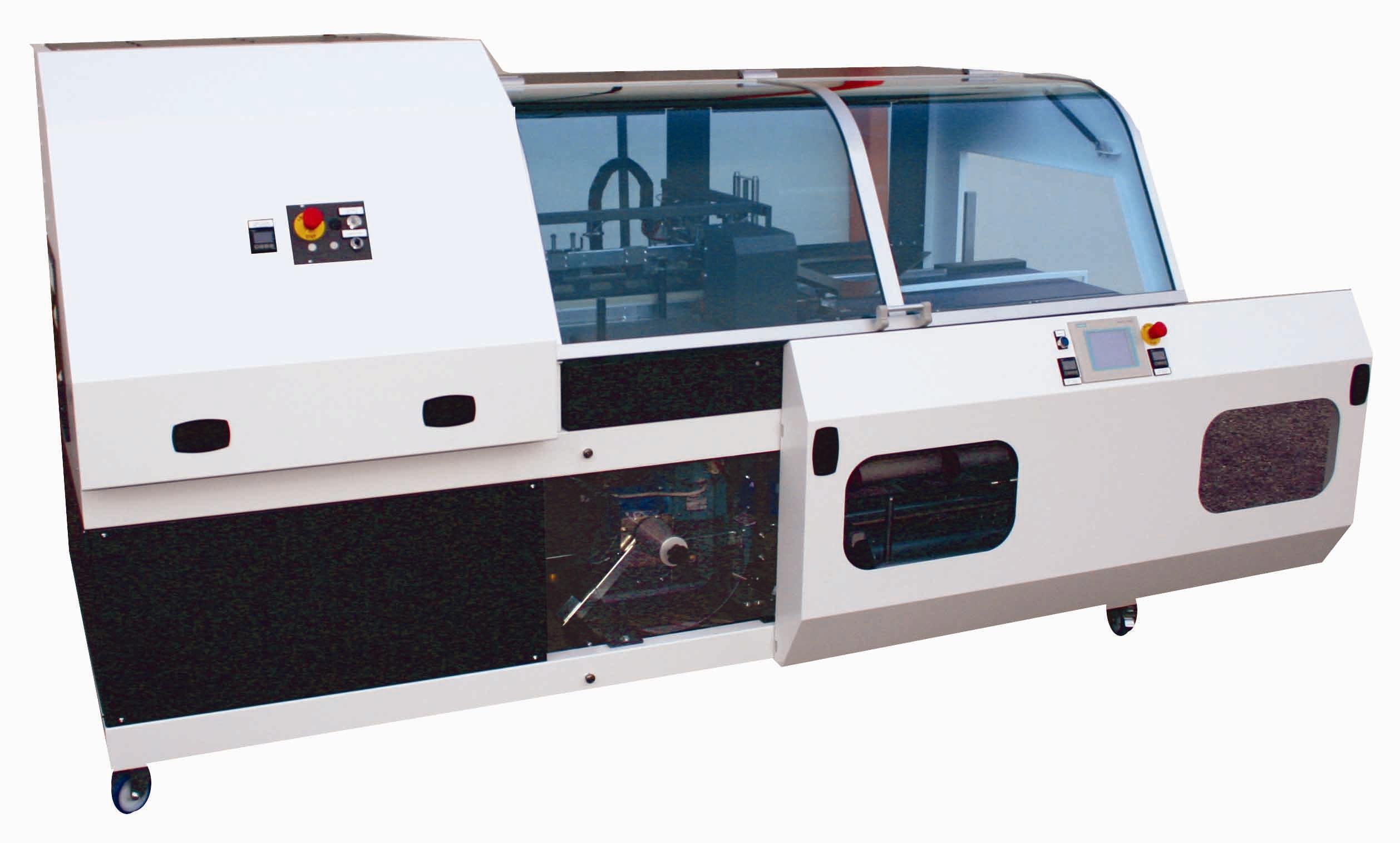

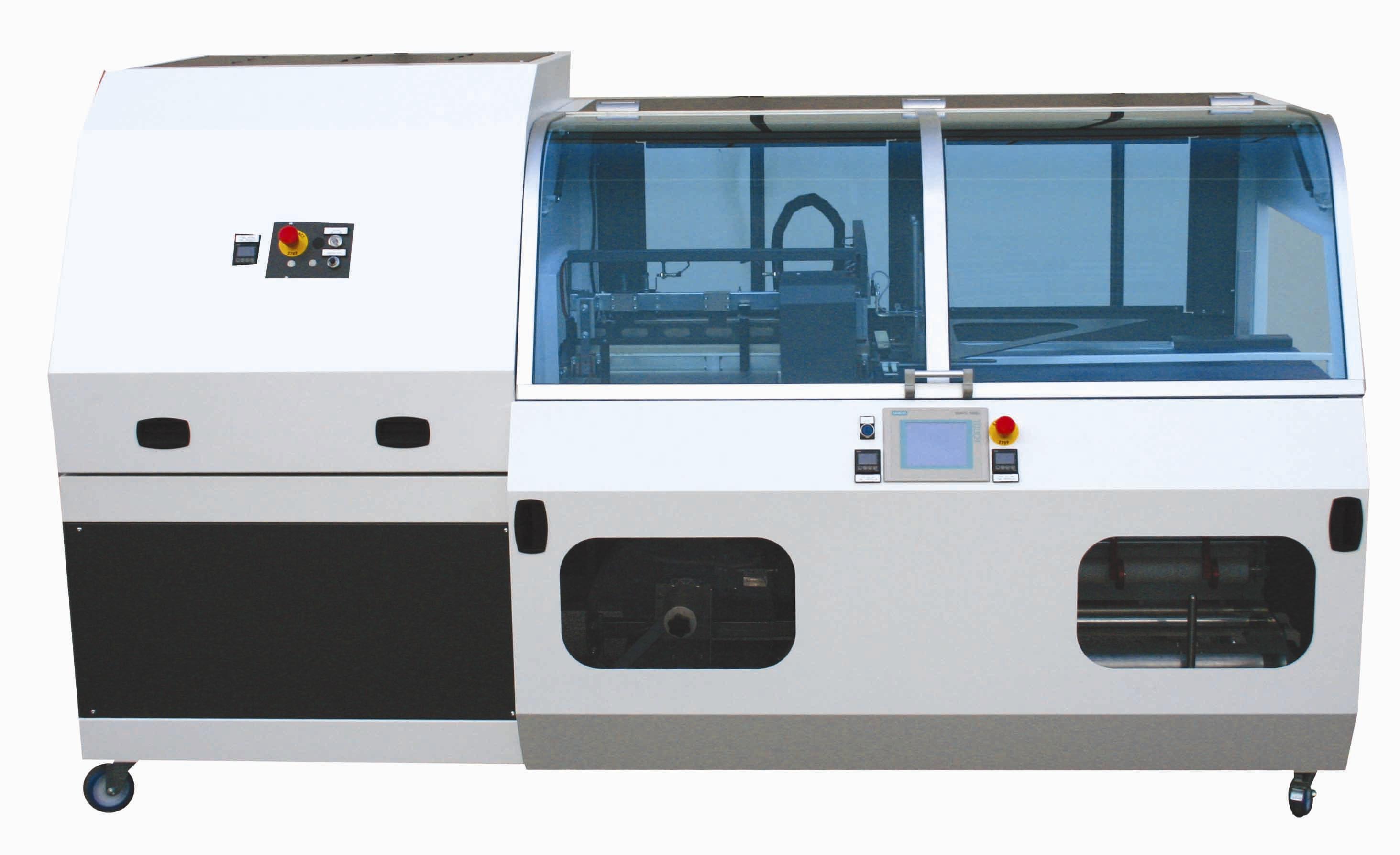

FULLY AUTOMATIC L’ SEALER MODEL 5060HRTCOMBINATION MACHINE WITH SEALER AND TUNNEL BUILT ON COMMON FRAME
FULLY AUTOMATIC PACKAGING LINE COMPLETE WITH CONVEYOR L’ SEALER MODEL F5060HRT
STAT. 1 SHRINK WRAPPING L SEALER F5060HRT
Heavy duty steel frame construction
Inverter system
In feed transport by roller driven with frequency and speed adjusted
Maintenance free sealing system, continuously heated with integrated separating knife without sealing bands, separating wire or teflon tape
Display control with step by step product set up and operation interface
L sealer bar ( one unit) only bar that going down vertically on the film that wrap the product, it puts the same pressure everywhere on the film, in every single parts!
Closing conveyor for running small packages
Hot knife cross seal bar with digital temperature control
Automatic product separation conveyor for randomly spaced products
Automatic motorized inverting triangle
Automatic motorized cross seal and side seal height adjustment
Siemens PLC Control and solid state electronics allows for easy integration of feeders, collators and accumulators.
Variable speed control
Pinwheel film perforator air evacuation system- no film tearing
Self diagnostic feature will alert operator of problem
Programmable memory to store 30 package sizes
Easy access electrical control panel with solid state relays and contactors
Powered film scrap wind up with built in alarm when full

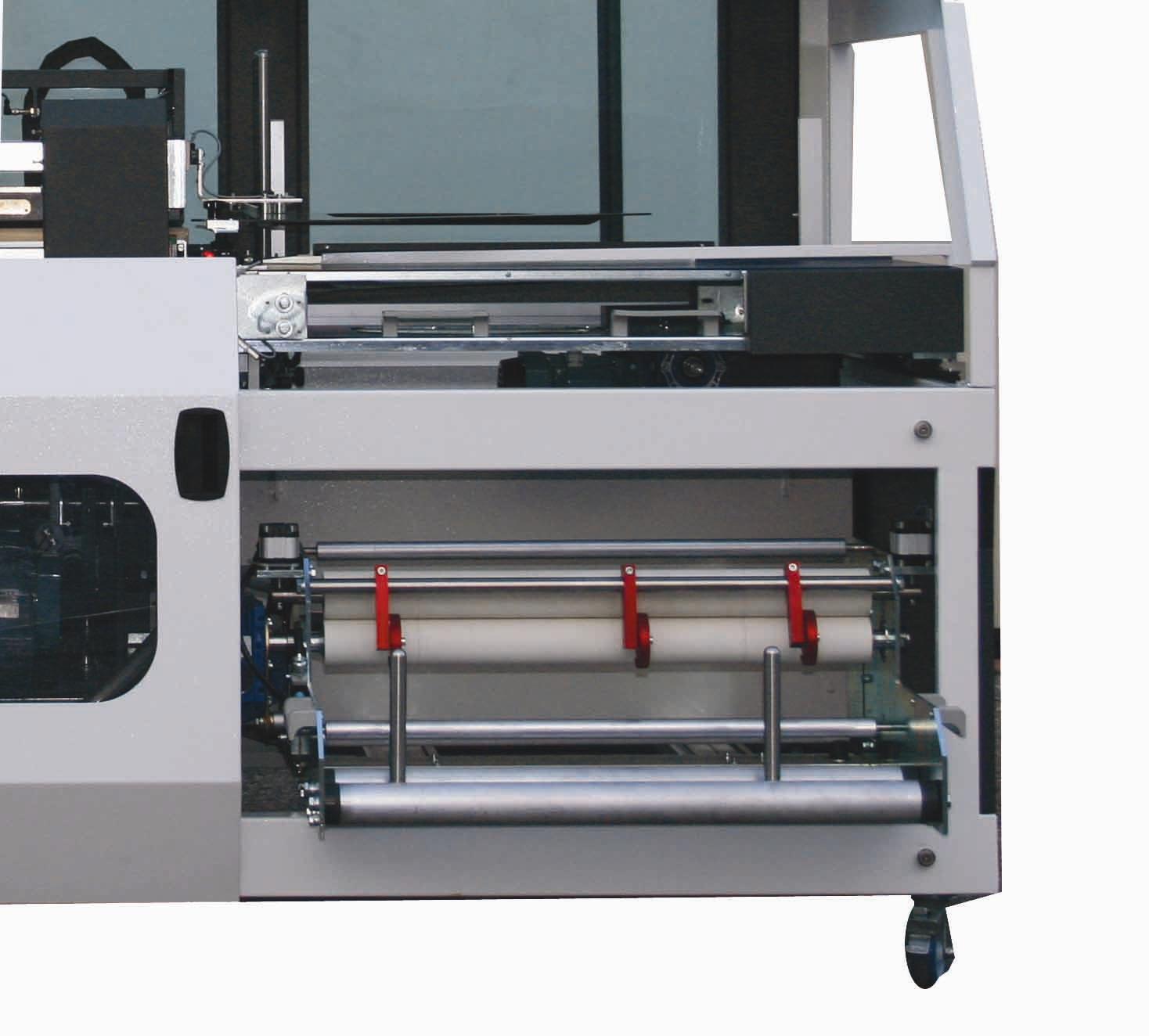

Easy load film rack- no lifting of roll overhead
No product- no cycle automatic machine stop
Horizontal and vertical photo eye provide automatic adjustment of package length
Machine is equipped with lexan security cover
CE approved.
TUNNEL FEATURES INCLUDE:
Fully re-circulating Air Chamber
Live Roller Rod Conveyor
Solid State digital Temperature Control
AC Variable Speed Drive
Independent Heater on/off switch
Automatic Cool down with Shut off
Tunnel can be moved by handles horizontally to be centered with products
BENEFITS:
Touching belt
Touch screen
5 Inverters (Every motor is supplied with one Inverter)
Motors: ABB
Electronics: SIEMENS
The sealing bar is vertical instead of having the ‘scissors’ shape’
The operator is allowed to control, to increase or decrease the speed of the machine.
