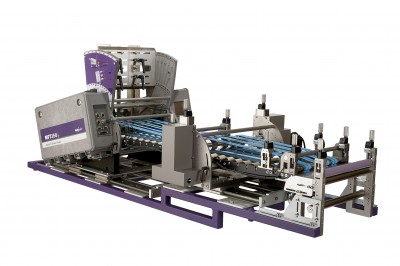

1300 DHSL - Web Tipping

General

• The accuracy of a web-tipping application will no longer be measured in fractions of an inch, but in fractions of a millimeter. The 1300DHSL  is built with the same durable technology as our high performance friction feeders. Combining proven software with a powerful, robust 800 watt servo-motor, and using a zerØ backlash spider coupling, the 1300DHSL effortlessly applies tip-on product to a web at production speeds while providing years of reliable operation. This system can easily be integrated into an existing production line or as part of a complete solution using one of our versatile accessories such as the Vacuum Track Conveyor or Automatic Product Loader.

1300 DHSL Specifications

• Minimum Size – 38mm (W) x 25mm (L)
• Maximum Size* – 300mm (W) x 325mm (L)
• Minimum Thickness – .05mm
• Maximum Thickness – 25mm

*All Multifeeder Technology equipment can be designed to meet specific production requirements

1300 DHSL Standard Features

•  ZerØ Backlash Spider Coupler
• Precise Ball Screw Actuators
• Siko® Adjustment Dials
• SKF® Sealed Bearings
• Robust 800 Watt Servo-Motor
• Leading Edge Registration*

*Patent-Pending

1300 DHSL Options

• Automatic Product Loader
• Vacuum Track Conveyor
• Labeling System
• Print-On-Demand System
• Product Verification System
• Product Reject System
• 3-Color Warning Light

Equipment Specifications

• Typical Height – 1337mm (52.6”)
• Typical Length – 1573mm (61.9”)
• Typical Width – 877mm (34.5”)
• Maximum Belt Speed – 40 Meters per Minute*
• Power Requirements – 110/220V 50-60Hz 6A
• Operating Temperture – 10°-35°C (50°-95°F)

*Application-Dependent
