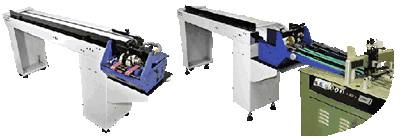

FEATURES OF A FEEDMAX
The FeedMAX is perfect for feeding magazines, self-mailers, postcards, and other types of products. The FeedMAX Series has all the characteristics of a high end Sure-Feed feeder which includes: Patented Dynamic Rotation Technology, "The Shaker" plate, heavy duty 1/4" thick powder coated side frames, product guides, remote stop, external run interface and variable speed control. The adjustable autoloader portion of the FeedMAX comes standard with the 6' autoloader (9' optional), product guides, variable speed and casters and an independent power switch.
ADVANTAGES TO INVESTING IN A FEEDMAX
- 3-4 months return on investment
- Straight away & right angle capabilities
- High Capacity Adjustable Autoloader
- Improve product handling
- Feeds a wide range of products
- Reduce labor cost within the Work Cell
- Integrates easily with In-Line Vacuum Bases
TECHNICAL SPECIFICATIONS
- Maximum Product Size - 12"W x 13"L
- Minimum Product Size - 3.25"W x 5"L
- Maximum Product Thickness - .625"
- Minimum Product Thickness - .004"
- Feeder Capacity - 2000 #10 Envelopes
- Maximum Foot Print - H - 40" W - 16" L - 120" (9')
- Minimum Foot Print - H - 35" W - 16" L - 85" (6')
- Speed - Variable up to 500 ft/min
- Electrical - 120 VAC/240 VAC
- Separator - Dynamic Rotation Technology
- Drive Motor - Variable DC
APPLICATIONS
Interfaces with all ink jet bases and other continuous feed applications.
OPTIONS
-
-
-
Straight away & right angle capabilities
FEEDABLE MATERIALS
Envelopes 8 to 64 Page Sigs
Flats Pamphlets
Self Mailers Leaflets
Postcards Maps
Single Sheets Chipboard
Magazines Cardboard
Booklets Plastics
Folders Flyers
FEATURES OF A FEEDMAX-S
Shuttle Feeders limit your range of feedable products and stack heights. The FeedMAX-S is designed to eliminate both issues by shingling material on a high capacity conveyor that waterfalls into the feeder hopper. Combine the jogging wegde with Dynamic Rotation Technology will increase your productivity by three times. The FeedMAX-S comes standard with Sure-Feed's Patented Dynamic Rotation Technology, "The Shaker" plate, 6' autoloader (9' optional), External Run Interface, and Casters.
ADVANTAGES TO INVESTING IN A FEEDMAX-S
- 3-4 months return on investment
- Straight away & right angle capabilities
- Increase production on Shuttle Bases
- Improve product handling
- Feeds a wide range of products
- Reduce labor cost
- Integrates with any Continuous Applications
TECHNICAL SPECIFICATIONS
- Maximum Product Size - 14.5"W x 13"L
- Minimum Product Size - 3.25"W x 5"L
- Maximum Product Thickness - .625"
- Minimum Product Thickness - .004"
- Feeder Capacity - 2000 #10 Envelopes
- Maximum Foot Print - H - 43" W - 16" L - 120" (9')
- Minimum Foot Print - H - 38" W - 16" L - 85" (6')
- Speed - Variable up to 500 ft/min
- Electrical - 120 VAC/240 VAC
- Separator - Dynamic Rotation Technology
- Drvie Motor - Variable DC
APPLICATIONS
Ink jet, Tabbing, Labeling, Scanning and Folding.
OPTIONS
-
-
-
Straight away & right angle capabilities
FEEDABLE MATERIALS
Envelopes 8 to 64 Page Sigs
Flats Pamphlets
Self Mailers Leaflets
Postcards Maps
Single Sheets Chipboard
Magazines Cardboard
Booklets Plastics
Folders Flyers
KEY FEATURES
Adjustable pile height using a
moveable photoeye.
Adjustable conveyor for different
size product.
"The Shaker" keeps the product
square and helps increase
separation.
Straight and 90 degree
configurations.
FeedMAX's product capacity is
approximately 5-6 TIMES that
of a Shuttle Feeder Hopper and
3-4 TIMES that of a Friction
Feeder Hopper.
FeedMAX Series easily integrates
into any continuous feed application
such as an Ink Jet Base, maximizing
your production. |
| |
